PLEASE NOTE:This product is subject to availability, to confirm availability please CONTACT US to confirm.
WANT MORE CAPACITY AND LESS WEIGHT?

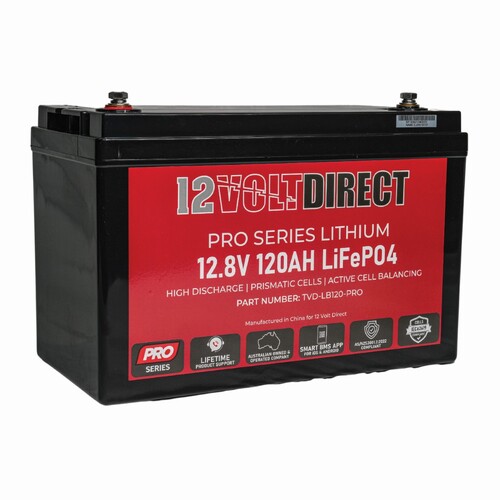

Introducing 12 Volt Direct's latest release the TVD-LB120.
Designed to perform where other batteries cant, the TVD-LB120 provides up to 100A continuous power. This is ideal for running fridges, lighting, charging portable devices, and inverters up to 1000 watts.
This power plant packs a whopping 120AH of capacity into a slim standard case size and weighs in at only 15KG
Please note this battery is NOT suitable for under bonnet use.
WHY LITHIUM?
Lithium batteries provide far greater useable amp hours than their lead-acid counterparts. Unlike lead-acid lithium batteries can be deeply discharged without affecting the cycle life. This means you can use the battery for longer before having to recharge. In comparison, AGM batteries are generally recommended to only be discharged to 50% of their capacity to maximize their cycle life whereas lithium can generally be discharged to 80-90% of the capacity.
COST
While the initial investment of a lithium battery is more than lead-acid the service/cycle life of lithium is far superior. Typically lead-acid batteries have a service life of 300-900 cycles whereas Lithium has a cycle life of 2000+ cycles at a much higher discharge. That being said you would expect to replace your lead acid battery 2 or 3 times in comparison to replacing 1 Lithium battery.
Longer life Lithium batteries are rated for 2,000 – 5,000 cycles and much more if used carefully, giving you several times the life expectancy of standard lead-acid batteries
Powerful Lithium batteries allow you to pull far more amps out of the same size battery systems
Light-weight Lithium batteries are less than half the weight of the equivalent lead-acid battery.
Fast recharge Lithium batteries charge more efficiently and don’t require as many stages during charging. Therefore, they will charge faster, and hold more of the energy from solar panels and other charging devices.
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The 12 Volt Direct Difference
Deep cycle batteries may appear similar on the outside but don't be fooled, there are key differences between low-quality offerings often found on online auction sites and 12 Volt Direct's premium quality offerings.
Prismatic Cells
The TVD-LBS120 is four high-quality 3.2 volt 100AH prismatic cells connected in series. Prismatic cells provide superior performance than their cheaper cylindrical cell counterparts as they are more stable and shock-resistant.
Built-in Battery Management System (BMS)
The TVD-LB120 is equipped with an advanced internal Battery Management System. This monitors and optimizes each Prismatic cell within the battery. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Built-in Volt Meter The TVD-LBS120 features an LCD screen on the top of the battery to allow you to easily see your battery level of charge at any point in time. The screen is backlit to allow for ease of use whether it's day or night.
SPECIFICATIONS
NOMINAL VOLTAGE
12.8V
CAPACITY
120AH
MAX SERIES / PARALLEL CONFIG
4P OR 4P
NORMAL CHARGE VOLTAGE
14.6V
FLOAT VOLTAGE
14.0V
DISCHARGE CUTOFF VOLTAGE
10.0V
CHARGE TEMP
0-45°C (60°C max discharging)
DISCHARGE TEMP
0-45°C (60°C max discharging)
SELF-DISCHARGE
Less than 3% per month
INITIAL IMPEDANCE
220mΩ
WEIGHT
15KG
MAX CHARGE CURRENT
50A
MAX DISCHARGE CURRENT
100A
PULSE CURRENT
200A (10 Seconds)

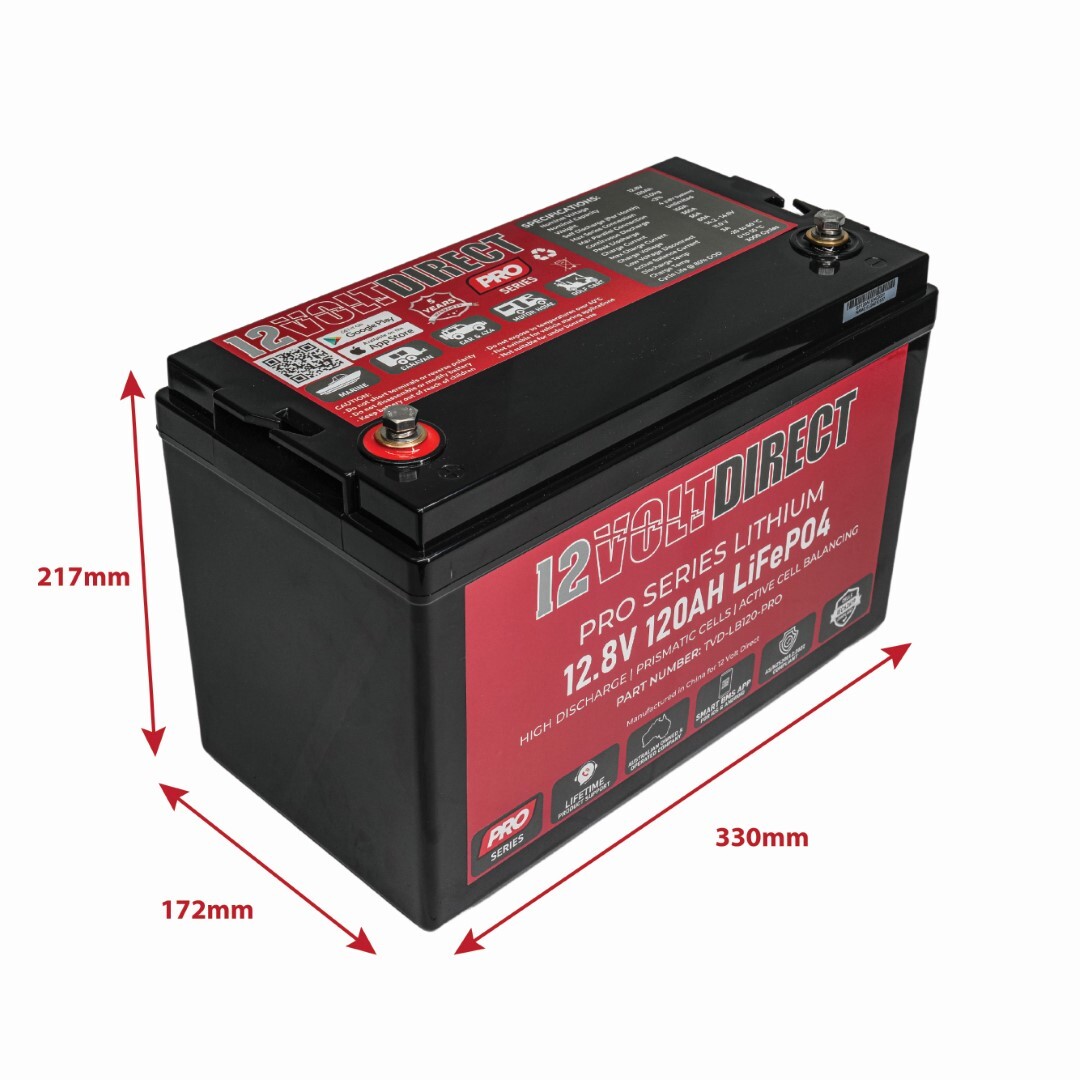

DIMENSIONS
330 X 172 X 217mm
CYCLE LIFE
2000 CYCLES @ 85% DOD
THE 12 VOLT DIRECT GUARANTEE
All 12 Volt Direct products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 3 Year Australian Warranty.
